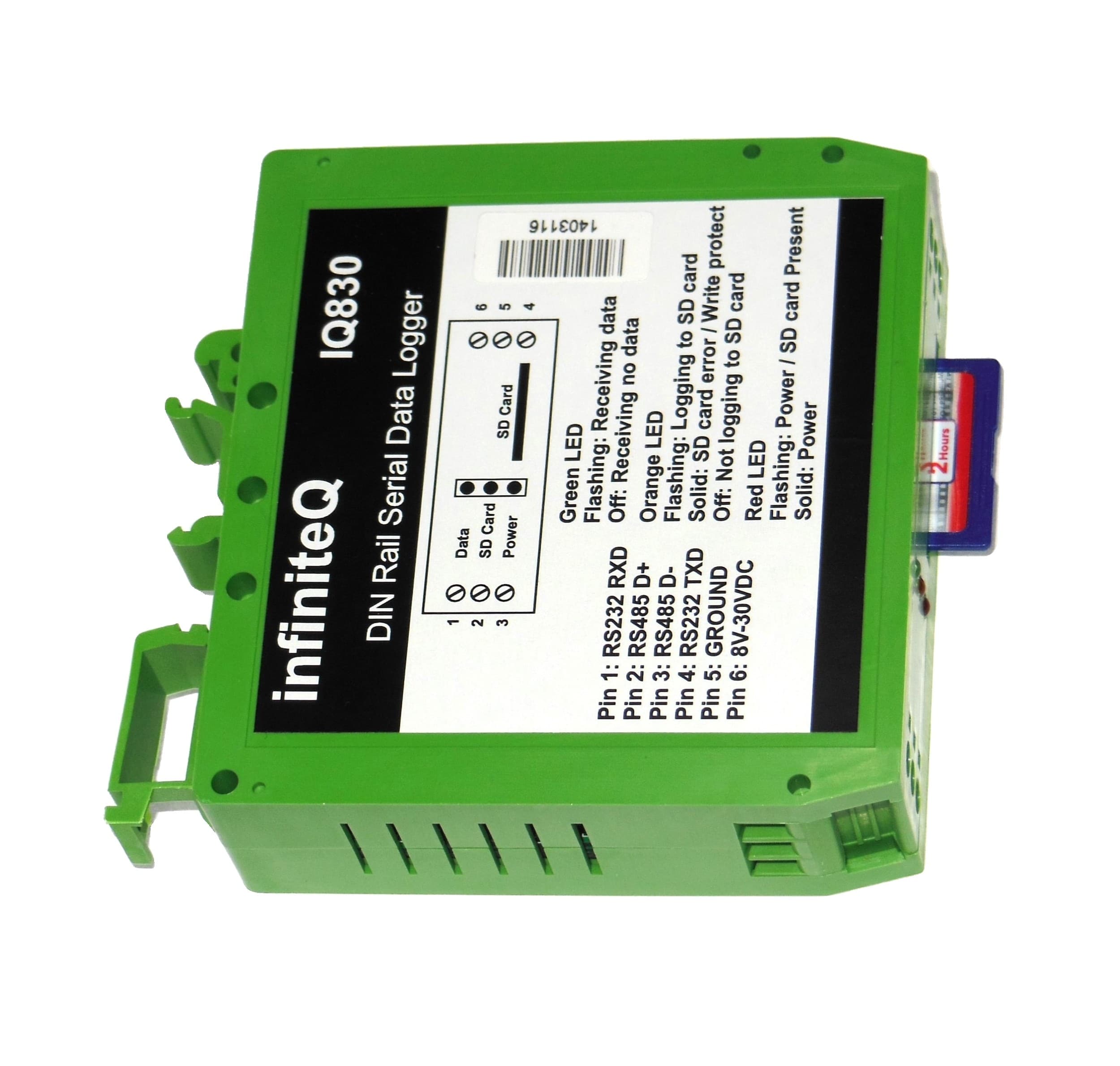

Rail Mount Serial Data Logger

Rail mount serial data logger
Model IQ830
is a rail mount Serial Data Logger for RS232 and RS485 inputs.  Data is logged to the SD card at a minimum logging interval of 1 second in CSV format.  Packaged in a space saving housing, this logger is quick and easy to install.  LED's indicate receiving data, logging and SD card status.

Applications include interfacing with devices which output serial data, such as our

The serial ASCII protocol, with 9600 baud, 8 data bits, No parity, 1 stop bit, is shown below.  This example is from a weighing device:

<*> = Decimal 42
<AAA> (address) <SPACE> (Only transmitted if address > 0)
<HH:MM:SS><SPACE><DD/MM/YYYY><SPACE> (Optional field if realtime clock is selected = Time & Date)
<G/N><SPACE> = G=Gross, N=Net
<10 digits right justified, leading zero suppression, including decimal point and polarity>
<SPACE> = Decimal 32
<UNIT>= None=Unit not transmitted, g, kg, t, oz, lb, T, N
<CR> = Decimal 13
<LF> = Decimal 10
  • RS232 and RS485 ports
  • Logs at up to 1 second intervals to SD card
  • Data stored in Comma Separated Variable file (.CSV)
  • Supports all SD card capacities, both normal and HC
  • 8-30VDC protected switch mode power supply
  • Extremely quick and easy to install
  • Space saving rail mount enclosure
  • 1 year warranty
CapacityNormal and HC cards supported
Output file formatComma Separated Variable (.CSV)
Supply Voltage 8 to 30VDC switch mode power supply with 33V over voltage and reverse voltage protection
Supply Current Typically 45mA @ 12VDC
Status LED'sGreen LED
Flashing: Receiving data
Off: Not receiving data
Orange LED
Flashing: Logging to card
Solid: Card error/write protect
Off: Not logging to card
Flashing: Power / Card present
Solid: Power on
Serial interfaceRS232 or RS485
Operating temperature-10°C to 50°C (14°F to 122°F)
Storage temperature40°C to 80°C (-40°F to 176°F)
Operating/storage humidity<85% RH non-condensing
TypeRail mount
Dimensions79.5 x 74 x 25mm
(L x H x D)3.13” x 2.91” x 0.98”

IQ830 serial RS232 and RS485 data logger
