Load Cell Calibrator and Tester Calog-LC II

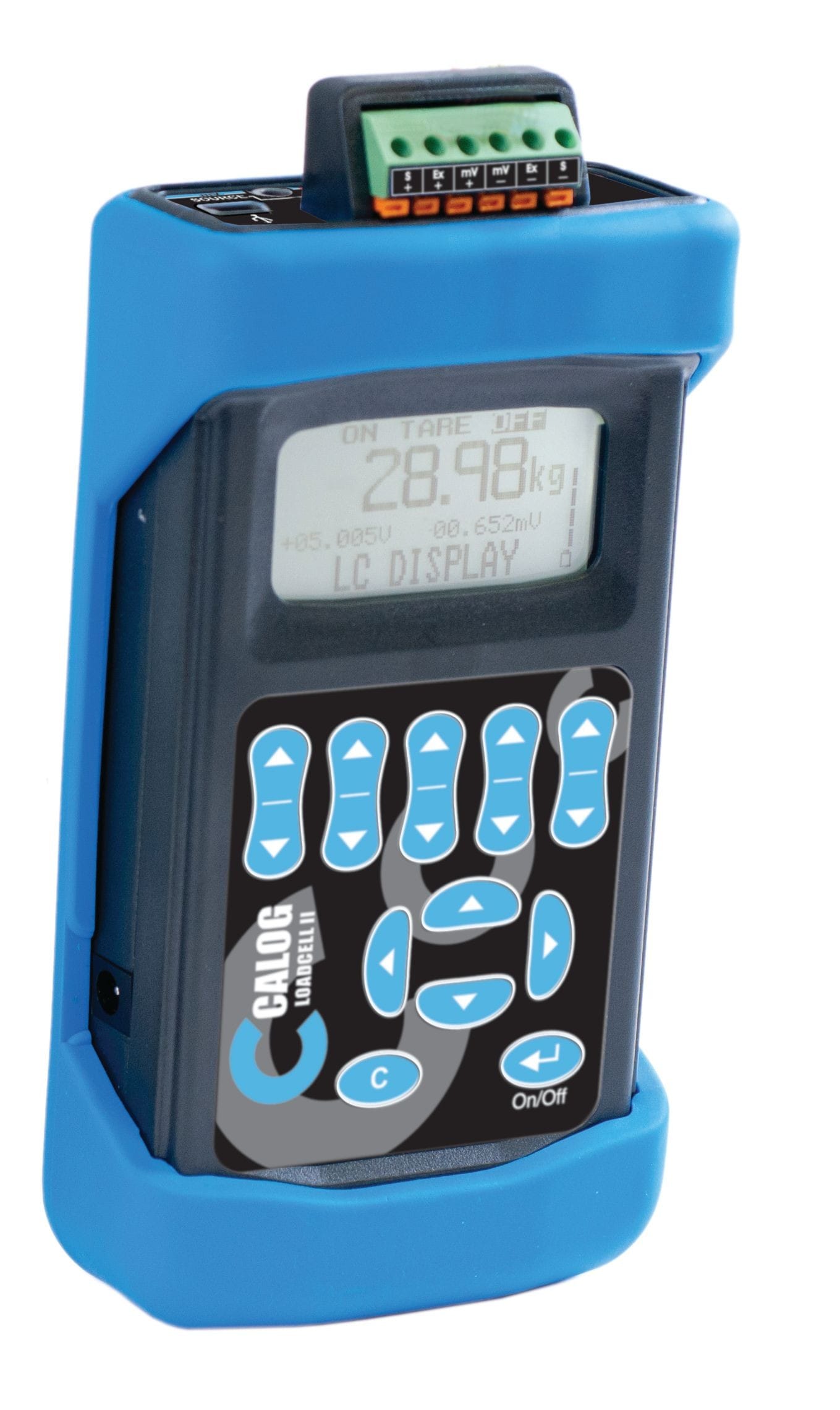

CALOG-LC II is a calibration instrument for testing load cells, system measurement and simulation, load cell measurement and simulation, with isolated analogue retransmission. This unique hand-held load cell calibrator tester is quick and easy to set up and use - with simple to follow graphic displays, on-board connection diagrams and long-lasting built-in rechargeable Li-ion batteries. CALOG units have the user-friendly 'key-per-digit' function to simplify numeric selection by means of five individual up/down keys. Data may be logged to the removable SD card in CSV format, with user-selectable data fields and timebase. Logged data may also be downloaded via the USB port. Recalibration facilities are available from Instrotech or an approved laboratory via the factory supplied calibration access code. CALOG calibrators comply with EMC and EMI and Low Voltage directives. All CALOG calibrators are supplied in a case with test leads, mains charger and non-slip rubber boot for the UL94 V-O flame-retardant ABS plastic IP54 dust and splash proof housing. CALOG-LC II also doubles as a portable 5-digit load cell display - so testing and calibation of load cells, amplifiers and systems may be done using a single high-accuracy instrument.
Features:
  • Small, rugged, handheld with a protective rubber cover
  • Graphic display of measured value, percent and battery status
  • Measure, source and simulate 0-24mA with 0.01% FS accuracy and 0.001mA resolution
  • Measure, source and simulate -4.5 to 35.000mV with 0.01% FS accuracy and 0.001mV resolution
  • Measure 20V with 0.01% FS accuracy and 0.001V resolution
  • Measure 0 to 2000.0 ohms with 0.03% FS accuracy and 0.1 ohms resolution
  • Trend logging with programmable timebase
  • Datalogging to SD card with programmable fields and times
  • USB port for access to logged data
  • Displays values in mA and units of mass
  • Programmable auto-off and selectable display resolution
  • Lithium Ion battery pack with 'fuel gauge' chip
  • User adjustable excitation voltage
  • Carry case, battery charger, SD card, test leads and factory calibration certificate
  • 2 year warranty, excluding batteries
Specifications:
Menus:

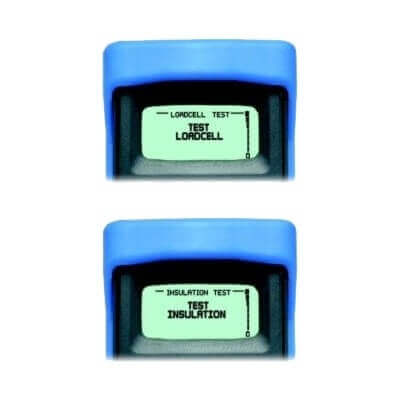

Calog load cell calibrator functions
