Multifunction Temperature Calibrator Calog-Temp
CALOG-Temp is a multi-function temperature calibrator for testing, measuring and calibrating all Thermocouple and RTD based systems. Its small size, rugged design, rubber protective boot, high precision and long-lasting re-chargeable lithium ion battery pack makes it well suited to industrial field calibration.
Using the simultaneous, isolated, combination of Thermocouple or RTD sourcing and mA measuring it is possible to calibrate any Tc/mA or RTD/mA temperature transmitter. The mA measurement can be passive with a remote supply or active 4-20mA 2-wire with the Calog-TEMP generating the 24VDC loop supply. The accurate mA measure and source on the calibrator allows it to be used for all mA loop testing and instrument calibration. For temperature monitoring over time CALOG calibrators may be set in trend mode with a selectable timebase to graph a temperature profile. This is ideal for testing ovens or for optimising PID temperature controllers. Data may be logged to the removable SD card in CSV format, with user-selectable data fields and timebase. Logged data may also be retrieved via the USB port. CALOG calibrators are made by Instrotech and comply with EMC and EMI and Low Voltage directives.
Features:
  • Small, rugged, handheld with a protective rubber cover

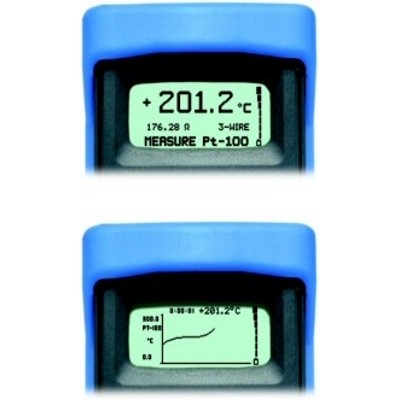

  • Graphic display of measured value, percent and battery status
  • Continuity test function
  • Trend logging with programmable timebase
  • Datalogging to SD card with programmable fields and times
  • USB port for access to logged data
  • Displays values in mA and % or % and mA
  • Programmable auto-off and selectable display resolution
  • Measure and source types K, J, T, B, R, S, E, N, U and L thermocouples
  • Configurable internal, external or manual cold-junction compensation
  • Accuracy better than 0.1% of FS excluding CJ errors and Tc errors with 0.1°C resolution
  • Measure and source Pt50, Pt100, Pt500, Pt1000, Ni100 and Ni120
  • Simultaneously source thermocouples or RTD's and measure mA
  • Measure and source Ohms and RTD in 2, 3 or 4-wire configurations
  • Measure and source -10 to 100 mV with 0.01% accuracy and 1 microvolt resolution
  • Measure, source and simulate 0 to 24 mA with 0.02% accuracy and 1 microamp resolution
  • Displays in °C, °F, Kelvin or Rankine
  • Lithium Ion battery pack with 'fuel gauge' chip
  • Built-in 24V transmitter power supply
  • Plug-on bare-wire Tc CJC module supplied as standard
  • Carry case, battery charger, SD card, test leads and factory calibration certificate
  • 2 year material and workmanship guarantee (excludes batteries)
Specifications:
Calog temperature calibrator functions
