Large Digit Displays
Models IQ400 and IQ401

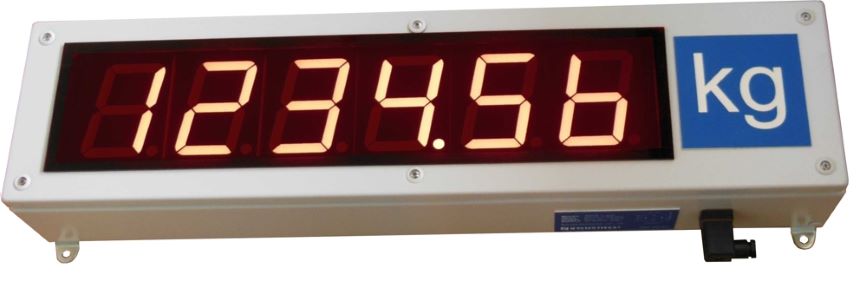

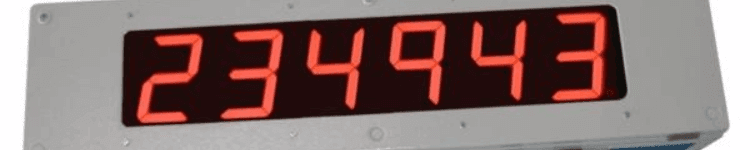

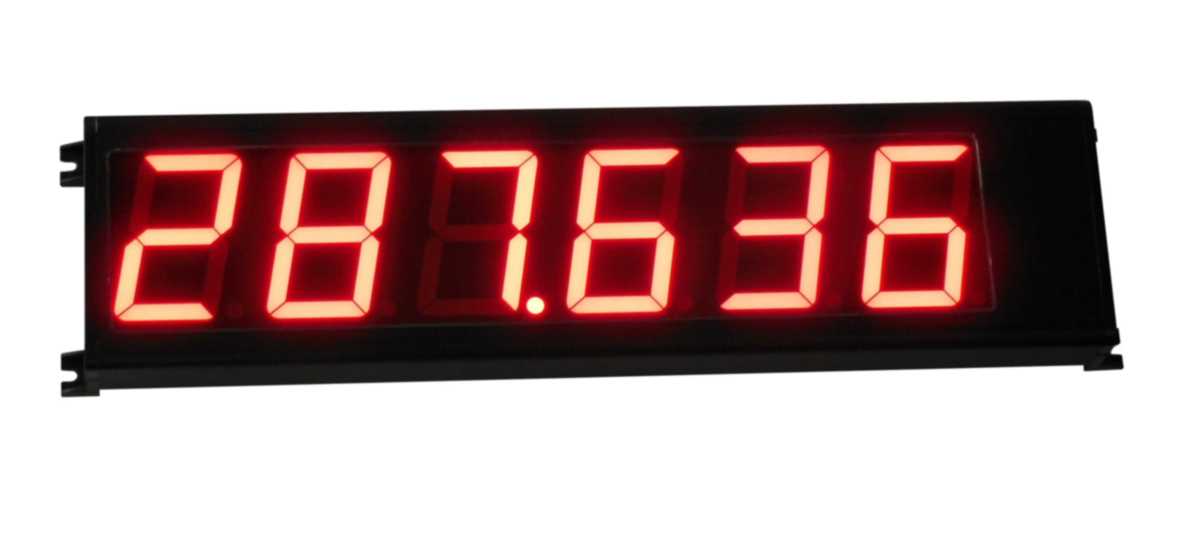

are 4 or 6 digits displays with 57mm high 7-segment red LED's.
These units have excellent visibility from up to 25m away. Housings are extruded aluminium with plastic end caps and integral mounting lugs.
Inputs are both RS232 and RS485, catering for various user-programmable types of serial protocols, including Modbus ASCII and Modbus RTU. Special code and un-housed displays are also available as required.
Applications include remote displays for process inputs and weighing systems. These displays may also be used with wireless Radio Modem Transceivers.
These units have excellent visibility from up to 25m away. Housings are extruded aluminium with plastic end caps and integral mounting lugs.
Inputs are both RS232 and RS485, catering for various user-programmable types of serial protocols, including Modbus ASCII and Modbus RTU. Special code and un-housed displays are also available as required.
Applications include remote displays for process inputs and weighing systems. These displays may also be used with wireless Radio Modem Transceivers.

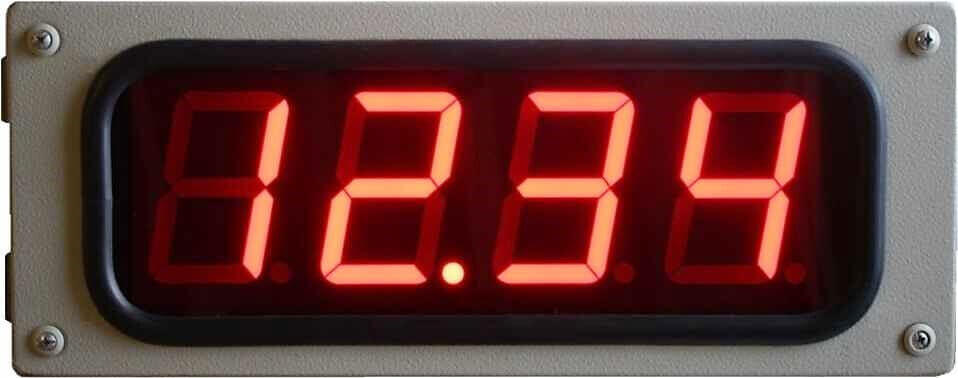

Models IQ410, IQ412 and IQ411 are 4, 5 or 6 digits displays with 100mm high 7-segment red LED's.
These units have excellent visibility even from 50m away. Housings are IP65 coated steel enclosures with mounting lugs.
Input types are RS232 and RS485 and cater for various user-programmable protocols. Special code and un-housed display PCB's are also available as required. Various proprietary ASCII protocols are standard as well as Modbus ASCII and Modbus RTU.
Applications include remote displays for process, counting and speed inputs as well as weighing systems. These displays may also be used with our wireless Radio Modem Transceivers.
These units have excellent visibility even from 50m away. Housings are IP65 coated steel enclosures with mounting lugs.
Input types are RS232 and RS485 and cater for various user-programmable protocols. Special code and un-housed display PCB's are also available as required. Various proprietary ASCII protocols are standard as well as Modbus ASCII and Modbus RTU.
Applications include remote displays for process, counting and speed inputs as well as weighing systems. These displays may also be used with our wireless Radio Modem Transceivers.
ORDER CODES:
IQ4104-digit housedIQ4125-digit housedIQ4116-digit housed
IQ4104-digit housedIQ4125-digit housedIQ4116-digit housed

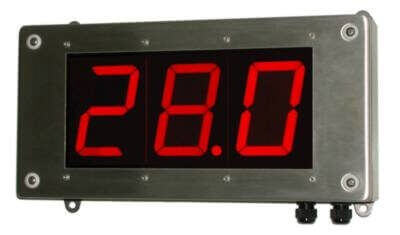

Model 1024 is a range of large displays with 3, 4, 5 or 6 digits and 100mm high red LED 7-segment displays. These units are factory configured for Serial (RS232 and RS485), BCD (parallel or multiplexed), Counts or Rate / Speed inputs. Enclosures may be IP54 acrylic, IP65 epoxy coated mild steel or IP66 stainless steel, with acrylic or safety glass viewing windows. Excitation is standard for 2-wire or 3-wire sensors and proximity switches. These instruments meet EMC and EMI and Low Voltage directives.
With the addition of our Radio Modem Transceiver, Model 1024 may be used as a remote display with Serial input from a computer, embedded controller or from any of the large range of Instrotech Indicators.
With the addition of our Radio Modem Transceiver, Model 1024 may be used as a remote display with Serial input from a computer, embedded controller or from any of the large range of Instrotech Indicators.

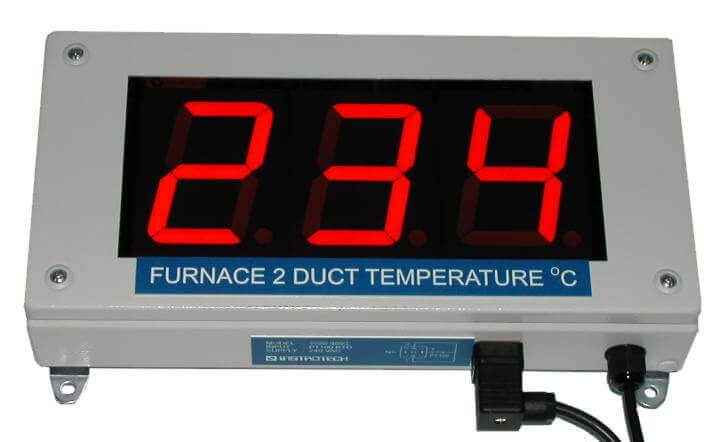

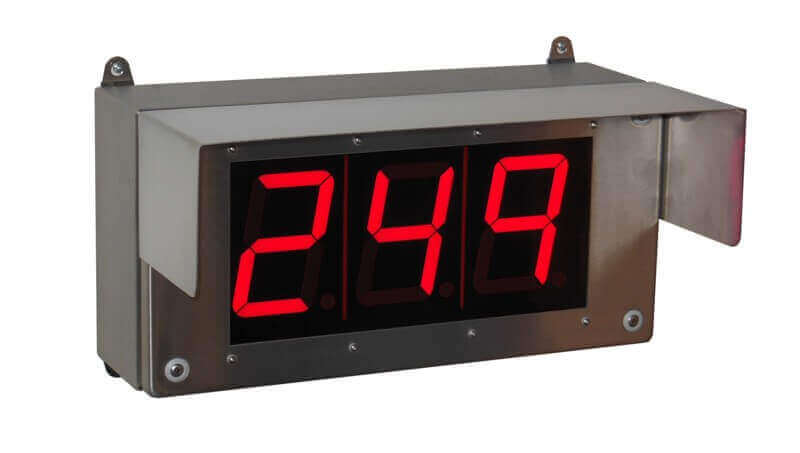

Model 1036 is a large indicator with 100mm high digits designed for indoor or outdoor use with IP54 or IP65 environmental protection ratings. The housings may be acrylic, epoxy coated mild steel or stainless steel, with acrylic or safety glass viewing windows. There are variants with 3, 4, 5 or 6 digits to suit most analogue and digital signals.
The input type may be any of the functions of the large range of Instrotech digital indicator types. For further information and specifications, please review the Digital Indicators page, or Contact Us for more details about your application.
The input type may be any of the functions of the large range of Instrotech digital indicator types. For further information and specifications, please review the Digital Indicators page, or Contact Us for more details about your application.
- Input Types:
- Temperature
- Quadrature
- Frequency
- Analogue
- Load cell
- Parallel
- Counts
- Serial
- Time
For all input and output options, hardware
and firmware functions, please see
Indicator - Options
- Model 2001 is an LED module used singly or in multiples for large digital displays with RS232 Serial ASCII input. The digit height is 125mm and the LED's are ultrabright sunlight viewable types. Module 2001B is a similar LED digital display for BCD inputs. These modules are used in the Introtech 2000 Series large digit displays with the various inputs and numbers of digits listed above.
ORDER CODES:
Model 23023-Digit, Process, Temperature, Load CellModel 23043-Digit, ASCIIbus, DIGIbus serialModel 24024-Digit, Process, Temperature, Load CellModel 24044-Digit, ASCIIbus, DIGIbus serialModel 25025-Digit, Process, Temperature, Load CellModel 25045-Digit, ASCIIbus, DIGIbus serialModel 26026-Digit, Process, Temperature, Load CellModel 26046-Digit, ASCIIbus, DIGIbus serial
Model 23023-Digit, Process, Temperature, Load CellModel 23043-Digit, ASCIIbus, DIGIbus serialModel 24024-Digit, Process, Temperature, Load CellModel 24044-Digit, ASCIIbus, DIGIbus serialModel 25025-Digit, Process, Temperature, Load CellModel 25045-Digit, ASCIIbus, DIGIbus serialModel 26026-Digit, Process, Temperature, Load CellModel 26046-Digit, ASCIIbus, DIGIbus serial
Large 125mm HighDigital Display

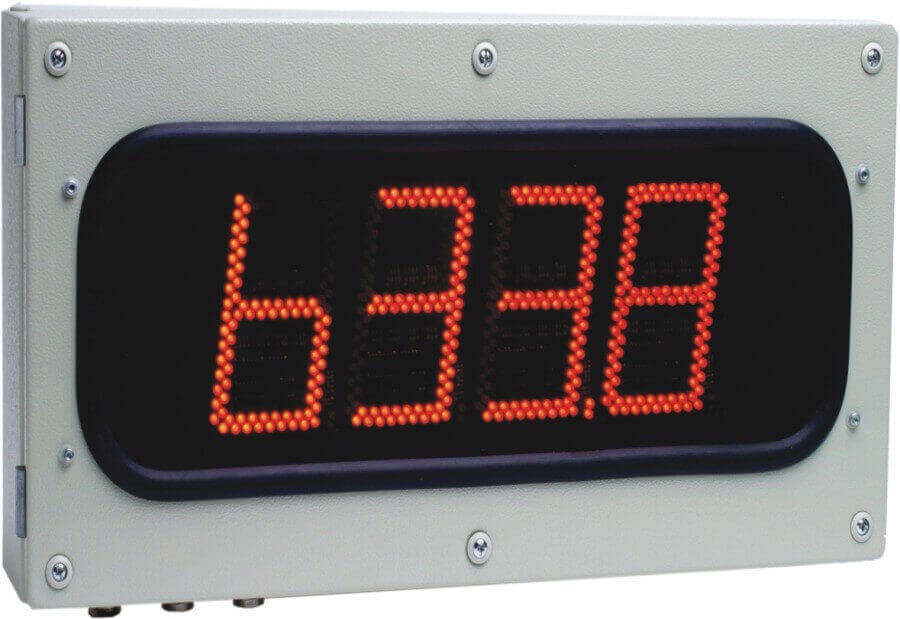

Series 2000 is a range of extra-large 3 to 6 digit LED array displays with 125mm high digits. These models are designed to be used in most process, temperature and weighing applications where high visibility and distant viewing is required. Using high intensity wide-angle LED's in an IP65 enamelled steel housing ensures clear viewing distances of greater than 50 metres. For high ambient temperature conditions, an optional special coated glass window is available
Series 2000 is a range of extra-large 3 to 6 digit LED array displays with 125mm high digits. These models are designed to be used in most process, temperature and weighing applications where high visibility and distant viewing is required. Using high intensity wide-angle LED's in an IP65 enamelled steel housing ensures clear viewing distances of greater than 50 metres. For high ambient temperature conditions, an optional special coated glass window is available
- Input Types:
- Temperature
- Quadrature
- Frequency
- Analogue
- Load cell
- Parallel
- Counts
- Serial
- Time
- Features:
- Excellent visibility with 125mm digits
- Ultrabright sunlight viewable LED's
- Greater than 50m viewing distance
- IP65 enamelled steel housing
- 999 to 99999 counts
- Serial input, direct or via remote Radio Modem
- Universally adaptable to all Instrotech indicator types
- Touch button programmable
- Analogue output option with programmable zero and span
- RS232 and RS485 bus communication option
For all input and output options, hardware
and firmware functions, please see
Indicator - Options

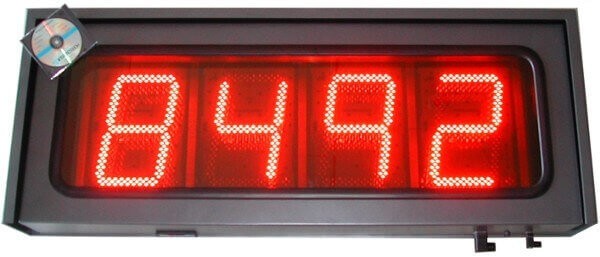

- Model 2802 is a 4 digit indicator with 280mm high ultrabright digits designed for outdoor use in harsh environments such as mines and quarries. The housing is a sun-protected weatherproof epoxy coated housing size 1360 x 530mm with safety glass viewing window and heat reducing "tropical roof".
- The input may be any of the functions of the range of the Instrotech 4 digit indicator types. These may be process, pulse, frequency, temperature, timing, load cell, serial or parallel inputs. For further details and specifications, please Contact Us.
