4-DIGIT

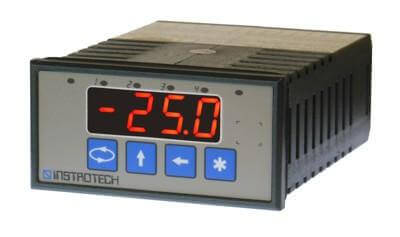

Model 4001 is a 4 digit LED Universal Programmable Indicator and may be applied to most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement and display of pressure, level, flow, frequency, DC voltages or currents, counting and speed. Options include linearisation, analogue or serial output and up to 4 alarm setpoints. The display and analog output is rangeable from the front pushbuttons. Excitation is standard and is link selectable for 2-wire or 3-wire transmitters, encoders and potentiometer input. This instrument meets EMC and EMI and Low Voltage directives.
- Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (includes 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency
- NPN, PNP, NAMUR or Contact Closure for Counts and Frequency
- Features:
- DIN 48 x 96 enclosure 147mm deep
- -1999 to 9999 counts
- 14.2mm bright red LED display (optional green)
- 24 volt supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Keypad lockout
- 'Plug and Play' feature available with selected options
- Analog output option with programmable zero and span
- RS232 and RS485 communications option

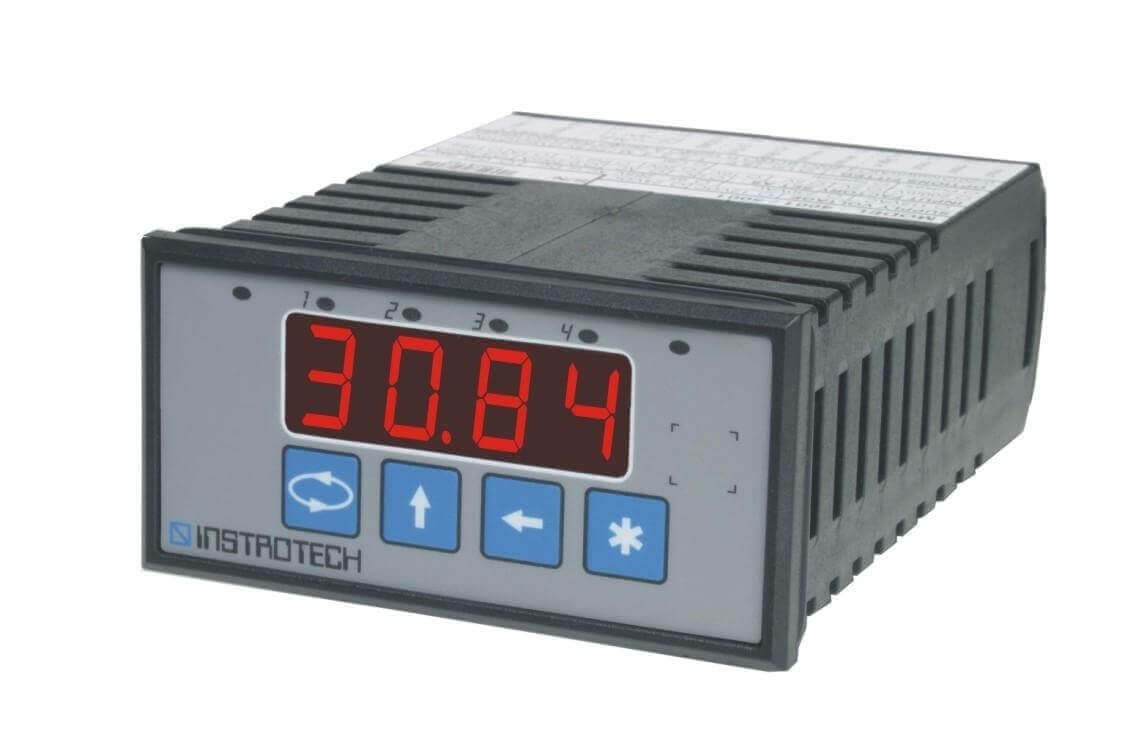

Model 4006 is a 4-digit (-1999 to 9999) LED high quality TRMS indicator, specifically designed for the measurement of AC/DC high voltages (up to 600V) or AC/DC high currents (up to 5A). The input terminals are heavy-duty types, and the housing is an industry standard DIN 48 x 96. Options include programmable analog output and up to 4 alarm relay setpoints. The display and all other functions are rangeable from the front pushbuttons. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Features:
- Voltage inputs up to 600V, current inputs up to 5A
- True RMS display for Volts and Current
- DIN 48 x 96 enclosure, 147mm deep
- -1999 to 9999 counts 4-digit display
- 14.2mm bright red LED display (optional green)
- Keypad lockout available at no extra charge
- Analogue output option with programmable zero and span
- RS232 and RS485 communication options
Model 4015 is a Dual Channel Process Indicator which may be applied to many applications requiring a dual input and a single display, for example, for temperature and humidity monitoring. Each channel is individually programmable for zero, span, input type and more. This model has a number of useful mathematical functions such as addition, subtraction, multiplication and division of the 2 input channels. The displays, alarms, analogue output, peak hold and other functions may be selected using channel A, channel B or the mathematical resultant. Options include linearisation, retransmission and up to 4 relays. Excitation is standard and is link selectable for 2-wire or 3-wire transmitters and potentiometer inputs.
- Features:
- DIN 48 x 96 enclosure, 147mm deep
- Front panel IP 65 / NEMA 4/UL Type 4 rating
- 4 digit (-1999 to 9999) display
- 14.2mm bright red LED display (optional green)
- Keypad lockout available at no extra charge
- Dual channel process inputs of 0-20mA, 4-20mA and Volts input
- Potentiometer input, 2 kΩ minimum
- Dual 24V or 5V or 2.5V DC supply for 2 or 3 wire transmitters
- Mathematical addition, subtraction, multiplication and division of both inputs
- EMC and EMI and Low Voltage directive compliant
.jpg "Instrotech Model 4015 dual channel process indicator")
5½-DIGIT

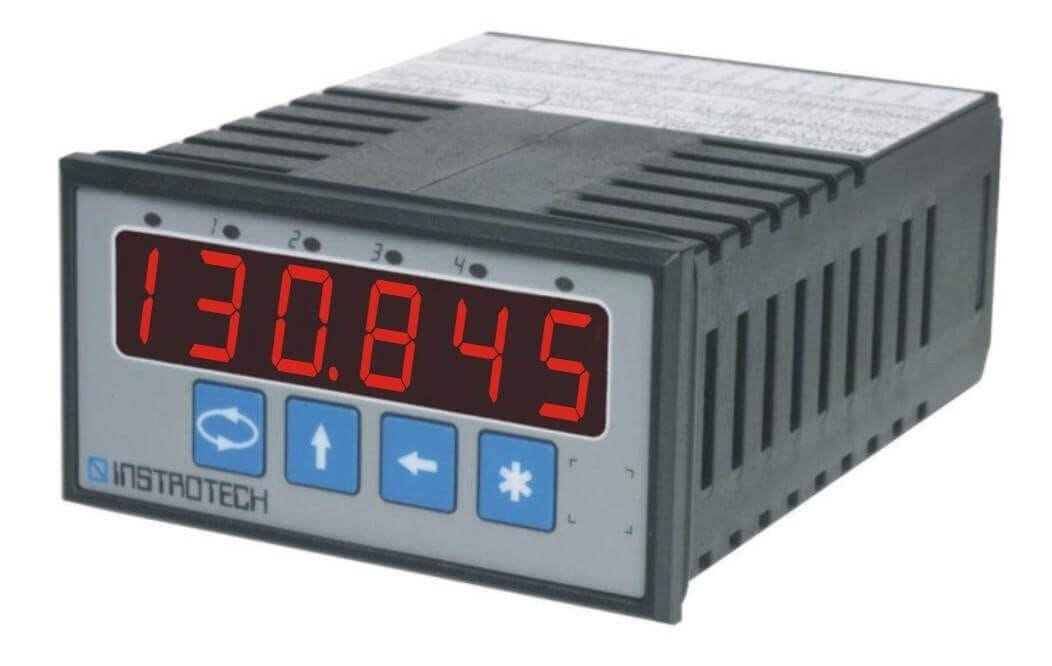

Model 5001 is a 5½ digit (-199999 to 199999) LED Universal Process Indicator and Digital Totaliser which may be applied to most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement, totalisation and display of pressure, level, flow, frequency, DC voltages or currents and RPM. Options include linearisation, programmable analogue retransmission, true RMS AC input and various alarms. The display and retransmission is rangeable from the front pushbuttons. Excitation is link selectable for 2-wire transmitters, encoders and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (covers 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency or Totaliser
- NPN, PNP, NAMUR or Contact Closure for Counting and Speed
- Dual channel Process and Frequency inputs
Features:
- Digital totalisation feature standard
- 1/8 DIN 48 x 96 enclosure
- -199999 to 199999 counts
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Process x Frequency for kW, mass flow, etc.
- Retransmission option with programmable zero and span
- RS232 and RS485 bus communication option
Model 5001-A is a 5½ digit (-199999 to 199999) LED universal indicator for most process variables and analogue inputs. This high accuracy, high-quality panel meter is designed for accurate measurement and linearisation of pressure, level and flow from voltage or current inputs. The user programmable linearisation, 3 alarm relay setpoints and alarm annunciation features make it ideal for tank level and volume display and control. The display, switching, lineariser and any options are programmable from the front pushbuttons. Excitation is link selectable for 2-wire and 3-wire transmitters and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Alarm annunciation provides for the acceptance of high or low level alarms while maintaining the LED indication.
Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (covers 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2kΩ minimum
Features:
- IP65 front faceplate
- 1/8 DIN 48 x 96 enclosure
- -199999 to 199999 counts
- 2.5VDC supply for potentiometers
- Touch button ranging and setpoints
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- 3 change-over alarm relay setpoints (4 optional)
- 2 to 16 point user selectable and programmable lineariser
.jpg "Instrotech 5001-A digital indicator annunciator display")
Model 5001-T is a 5½ digit (-199999 to 199999) LED Universal Process Indicator with Digital Totaliser and Process Integrator for most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement, totalisation and display of pressure, level, flow, frequency, DC voltages or currents and RPM. Options include linearisation, programmable analogue retransmission, true RMS AC input and various alarms. The display and retransmission is rangeable from the front pushbuttons. Excitation is link selectable for 2-wire transmitters, encoders and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (covers 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency or Totaliser
- NPN, PNP, NAMUR or Contact Closure for Counting and Speed
- Dual channel Process and Frequency inputs
- Analogue process integrator/totaliser functions
Features:
- Digital and Process totalisation features standard
- 1/8 DIN 48 x 96 enclosure
- -199999 to 199999 counts
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Process x Frequency for kW, mass flow, etc.
- Retransmission option with programmable zero and span
- RS232 and RS485 bus communication option
Model 5015
is a Dual Channel Process Indicator which may be applied to many applications requiring a dual input and a single display, for example, for temperature and humidity monitoring. Each channel is individually programmable for zero, span, input type and more. This model includes a number of useful mathematical functions such as addition, subtraction, multiplication and division of the 2 input channels. The displays, alarms, analogue output, peak hold and other functions may be selected using channel A, channel B or the mathematical resultant. Options include linearisation, retransmission and up to 4 relays. Excitation is standard and is link selectable for 2-wire or 3-wire transmitters and potentiometer inputs.
- Features:
- DIN 48 x 96 enclosure, 147mm deep
- Front panel IP 65 / NEMA 4/UL Type 4 rating
- 5½ digit (-199999 to 199999) display
- 14.2mm bright red LED display (optional green)
- Keypad lockout available at no extra charge
- Dual channel process inputs of 0-20mA, 4-20mA and Volts input
- Dual 24VDC supply for 2/3 wire transmitters
- Mathematical addition, subtraction, multiplication and division of both inputs
- EMC and EMI and Low Voltage directive compliant
6-DIGIT

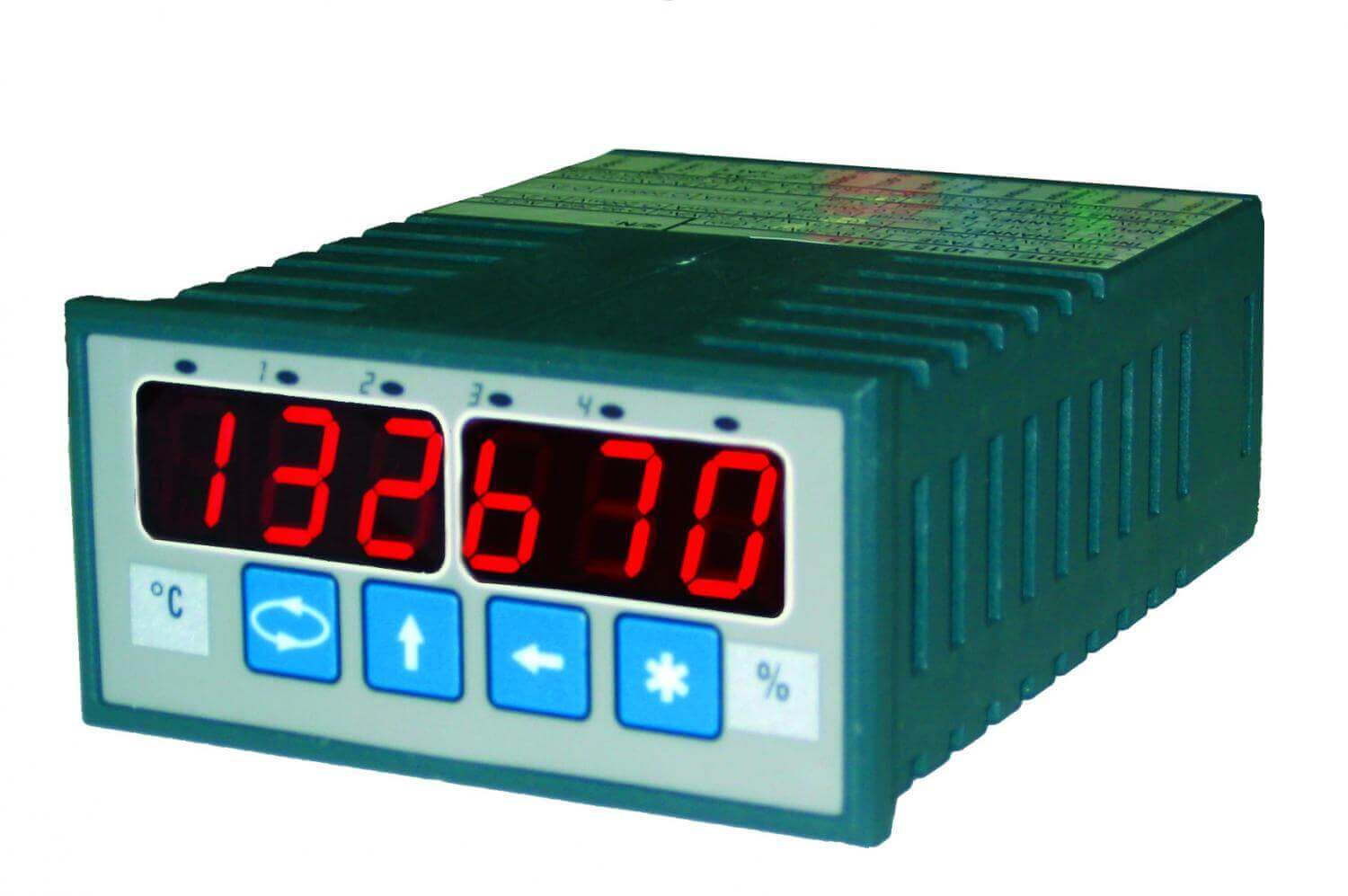

Model 5016 is a Simultaneous Dual Channel Dual Display Process Indicator which can be applied to many applications which require 2 inputs and 2 displays, for example, temperature and humidity monitoring. Each channel is individually setup for zero, span, and input type. The alarms, analogue out and peak hold can be selected using channel A or channel B. Options include linearisation, analog outputs and up to 4 relay setpoints. Excitation is standard and is link selectable for 2-wire and 3-wire transmitters and potentiometer input. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Features:
- 1/8 DIN 48 x 96 enclosure, 147mm deep
- Front panel IP65 / NEMA 4 / UL Type 4 rating, bezel 48 x 96 mm
- 2 simultaneous -199 to 999 display counts
- 14.2mm bright red LED display
- Dual channel process inputs of 0-20mA, 4-20mA and Volt input
- Dual 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Keypad lockout available at no extra charge
- Analog output option with programmable zero and span
- RS232 and RS485 communication option.
- 1-year material and workmanship warranty
Model 5600 is a 6 digit (-199999 to 999999) LED Universal Process Indicator and Digital Totaliser which may be applied to most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement, totalisation and display of pressure, level, flow, frequency, DC voltages or currents and RPM. Options include linearisation, programmable analogue retransmission, true RMS AC input and various alarms. The display and retransmission is rangeable from the front pushbuttons. Excitation is link selectable for 2-wire transmitters, encoders and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Input Types:0 - 20 mA4 - 20 mA0 - 200 mV0 - 2 V0 - 10 V (covers 0 - 5V and 1 - 5V)0 - 20 VPotentiometer, 2 kΩ minimum0.2 - 40,000 Hz, Counts or Frequency or TotaliserNPN, PNP, NAMUR or Contact Closure for Counting and SpeedDual channel Process and Frequency inputs
Features:
- Digital totalisation feature standard
- 1/8 DIN 48 x 96 enclosure
- -199999 to 999999 counts
- Alarms and options limited to 5½ digit
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Process x Frequency for kW, mass flow, etc.
- Retransmission option with programmable zero and span
- RS232 and RS485 bus communication option
- AC or DC auxiliary supply versions
- Front faceplate sealed to IP65
8-DIGIT

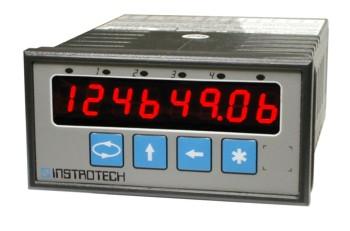

.jpg "Instrotech 8 digit red LED universal panel meter")
Model 8001 is an 8 digit LED Universal Process Indicator and Digital Totaliser which may be applied to most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement, totalisation and display of pressure, level, flow, frequency, DC voltages or currents and RPM. Options include linearisation, programmable analogue retransmission, true RMS AC input and various alarms. The display and retransmission is rangeable from the front pushbuttons. Excitation is link selectable for 2-wire transmitters, encoders and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (covers 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency or Totaliser
- NPN, PNP, NAMUR or Contact Closure for Counting and Speed
- Dual channel Process and Frequency inputs
Features:
- Digital totalisation feature standard
- 1/8 DIN 48 x 96 enclosure
- -199999 to 199999 counts
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Process x Frequency for kW, mass flow, etc.
- Retransmission option with programmable zero and span
- RS232 and RS485 bus communication option
Model 8001-T is an 8 digit LED Universal Process Indicator with Digital Totaliser and Process Integrator for most process variables with analog and digital inputs. This high accuracy, high-quality panel meter is designed for accurate measurement, totalisation and display of pressure, level, flow, frequency, DC voltages or currents and RPM. Options include linearisation, programmable analogue retransmission, true RMS AC input and various alarms. The display and retransmission is rangeable from the front pushbuttons. Excitation is link selectable for 2-wire transmitters, encoders and potentiometer inputs. This instrument meets EMC and EMI and Low Voltage directives. Selected options now feature ‘Plug and Play’ technology, allowing option boards to be ordered separately and field fitted when required.
- Input Types:
- 0 - 20 mA
- 4 - 20 mA
- 0 - 200 mV
- 0 - 2 V
- 0 - 10 V (covers 0 - 5V and 1 - 5V)
- 0 - 20 V
- Potentiometer, 2 kΩ minimum
- 0.2 - 40,000 Hz, Counts or Frequency or Totaliser
- NPN, PNP, NAMUR or Contact Closure for Counting and Speed
- Dual channel Process and Frequency inputs
- Analogue process integrator/totaliser functions
- Features:
- Digital and Process totalisation features standard
- 1/8 DIN 48 x 96 enclosure
- -199999 to 199999 counts for rate
- 99999999 counts for totalising
- Bright red LED display (optional green)
- 24VDC supply for 2 or 3 wire transmitters
- Low cost - high performance design
- Touch button ranging and setpoints
- Process inputs, frequency and counting functions
- Process x Frequency for kW, mass flow, etc.
- Retransmission option with programmable zero and span
- RS232 and RS485 bus communication option
