Universal S-Type Load Cells

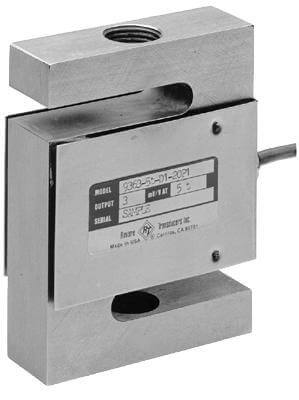

Nickel or Stainless Load CellModel 9363
- S-type tension or compression load cell
- Stainless steel version Model 9363
- Environmental sealing to IP67
- For overhead scales, hoppers and force measurement
- OIML R60 C3, NTEP IIIL or D3 accuracies
- 50 to 10000 kg metric capacities
- 50 to 20000 lb Imperial capacities
Stainless Steel S-Type Load CellModel B3G
- Stainless steel S-type load cell
- Universal, tension or compression
- Welded sealed to IP68
- For hanging and hopper scales and general weighing
- Various assembly accessories available
- OIML R60 accuracy class C3
- NTEP accuracy class N10
- Metric capacities 50kg to 10t
- Imperial capacities 50 lb to 20 Klb

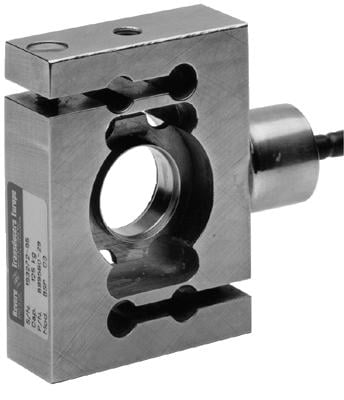

Stainless Steel S-Type Load CellModel BSP
- S-type tension or compression load cell
- Fully welded stainless steel
- Environmental sealing to IP66 / IP68
- For belt weighers, scales, testing and process weighing
- Integral overload stop
- Current calibrated trimmed output
- OIML R60 C3 or NTEP IIIL accuracies
- 50 to 5000 kg and Imperial capacities 100lb - 10Klb
Alloy IP67 S-Type Load CellModel H3
- Nickel plated S-type load cell
- Universal, tension or compression
- Environmental sealing to IP67
- For general weighing, hanging and hopper scales
- Various assembly accessories available
- OIML R60 accuracy class C3
- Metric standard capacities 25kg to 30t
- NTEP accuracy class N10
- Imperial standard capacities 100 lb to 20 Klb
Nickel Plated S-Type Load CellModel H3G
- Nickel plated S-type load cell
- Universal, tension or compression
- Environmental sealing to IP67
- For general weighing, hanging and hopper scales
- OIML R60 accuracy class C3
- Various assembly accessories available
- Metric standard capacities 25kg to 7.5t
- Also available in 10, 15, 20 and 30t capacities
- Imperial standard capacities 50 lb to 20 Klb
