Bolt-on Strain Transducers

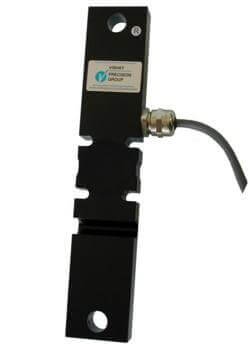

- Model 178
- strain transducers are for use on any load-bearing structure. These extensometers are used mainly on the supports of tanks, bins, silos and hoppers, transmitting signals proportional to the volume or level of bulk materials in vessels.
- Since the vessel supports do not need to be cut, raised or suspended, these transducers are easy to install on both new and existing structures. Made to strict quality control standards under load cell conditions for stability and repeatability, Model 178 extensometers are sealed to IP66.
- Other applications include strain and weight measurement, as well as stress and fatigue monitoring, overload protection and vibration detection.
- Features:
- Factory sealed
- Simple to retrofit
- Easy replacement
- 350 ohm bridge resistance
- Temperature compensated
- 1.7mV/V strain gauge output
- IP66 environmental protection
- Model HC178
- strain transducers are for use on any load-bearing structure. These alloy steel extensometers are used mainly for transmitting signals proportional to the volume or level of bulk materials in vessels.
- Since the vessel supports do not need to be cut, raised or suspended, these transducers are easy to install on both new and existing structures. Made to strict quality control standards under load cell conditions for stability and repeatability, Model 178 extensometers are sealed to IP66.
- Other applications include strain and weight measurement, as well as stress and fatigue monitoring, overload protection and vibration detection.
- Features:
- Factory sealed
- Simple to retrofit
- Easy replacement
- 350 ohm bridge resistance
- Temperature compensated
- 1.65mV/V strain gauge output
- IP66 environmental protection

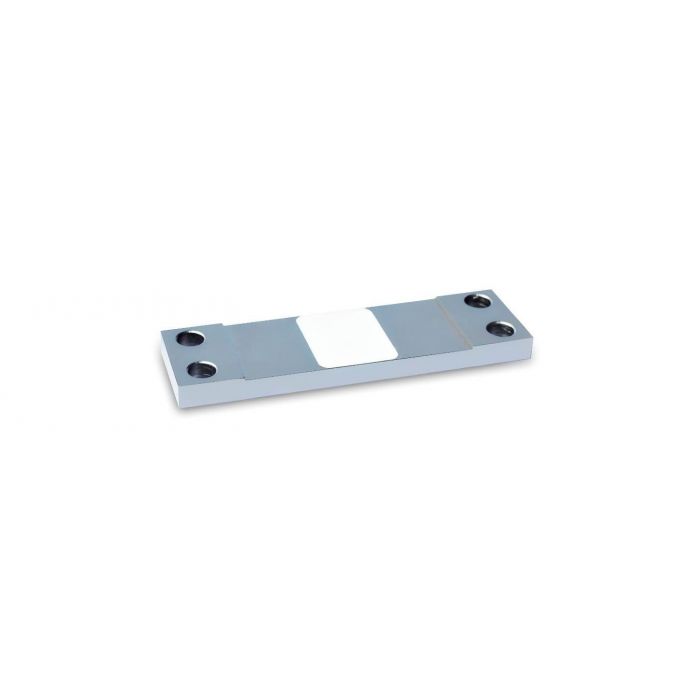

- Model H2B
- strain transducers may used on any load-bearing structure. These strain gauges are used on the supports of tanks, bins, silos and hoppers, transmitting signals proportional to the volume or level of bulk materials inside vessels.
- This bolt-on strain gauge is suitable for suspension force measurement, stress, fatigue monitoring and overload protection up to 3,110 N.
- Features:
- Low cost
- Nickel plated alloy steel
- Factory sealed
- High accuracy
- Suspension force measurement
- Easy to fit
- 350 ohm bridge resistance
- Temperature compensated
- 1.5mV/V strain gauge output
- IP65 environmental protection
