Wall Mount Belt Weigher IQ320
Model IQ320

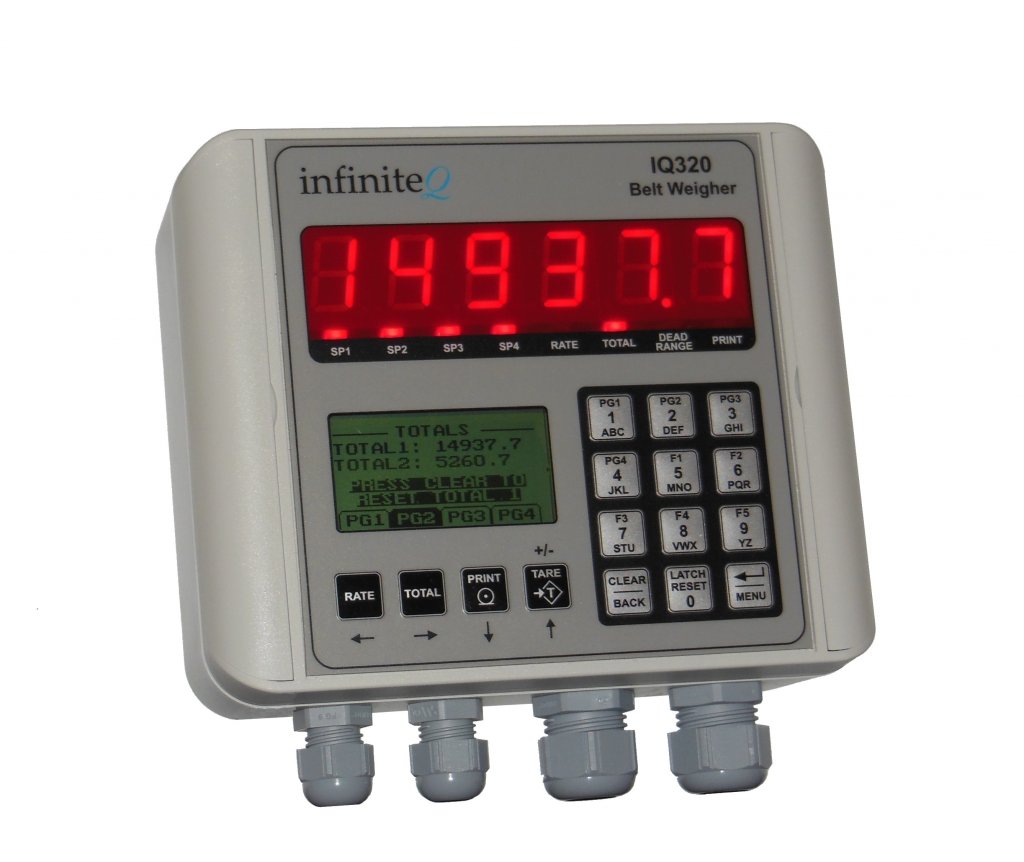

is a programmable wall-mount precision digital indicator for Belt Weighing applications. The high-bright 6-digit 20mm 7-segment LED display and 4-line backlit sunlight readable graphic LCD display make for quick and easy set-up with plain language menus and prompts.
With precision front end circuitry for high accuracy and stability, the ratiometric circuitry automatically compensates for temperature drift and excitation voltage variances due to cable loss.
5 VDC excitation voltage for use with either 4-wire and 6-wire load cells powers up to 6 x 350Ω or 10 x 1000Ω load cells. IQ320 has an internal jumper selectable power supply for powering shaft encoders, tacho-generators or pulse counting proximity switches for belt conveyor speed measurement. Advanced features include auto-zero tracking; user input linearisation; max/min recording; programmable front pushbuttons; 3 programmable digital inputs; security menu lockout; motion indication; advanced digital filtering; automatic offset calibration; plus many more to provide an all-in-one precision load cell indicator. RS232 and RS485 serial communications are standard, including MODBUS™ RTU and MODBUS™ ASCII protocols. A simple ASCII-out protocol is also provided for serial printing and communicating to large displays. Model IQ320 includes 4 electromechanical relays, 16-bit analogue retransmission and a Real Time Clock.
With precision front end circuitry for high accuracy and stability, the ratiometric circuitry automatically compensates for temperature drift and excitation voltage variances due to cable loss.
5 VDC excitation voltage for use with either 4-wire and 6-wire load cells powers up to 6 x 350Ω or 10 x 1000Ω load cells. IQ320 has an internal jumper selectable power supply for powering shaft encoders, tacho-generators or pulse counting proximity switches for belt conveyor speed measurement. Advanced features include auto-zero tracking; user input linearisation; max/min recording; programmable front pushbuttons; 3 programmable digital inputs; security menu lockout; motion indication; advanced digital filtering; automatic offset calibration; plus many more to provide an all-in-one precision load cell indicator. RS232 and RS485 serial communications are standard, including MODBUS™ RTU and MODBUS™ ASCII protocols. A simple ASCII-out protocol is also provided for serial printing and communicating to large displays. Model IQ320 includes 4 electromechanical relays, 16-bit analogue retransmission and a Real Time Clock.

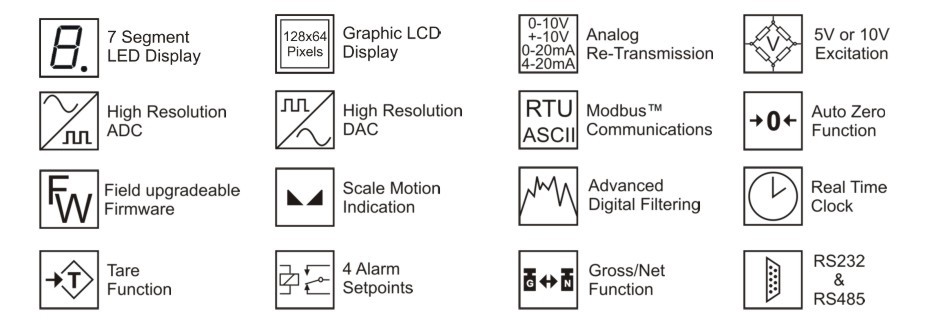

.jpg "IQ320 beltweigher functions")
